Model rocketry is a hobby that blends creativity, problem-solving, and live-action science. But before launching a rocket skyward, there’s a step you can’t skip—testing the rocket’s stability.
Without proper sturdiness, the model rocket might veer off course or fail to reach its target height. Never fear! With this helpful guide, you’ll learn how to test the stability of a model rocket and achieve a flawless launch.
What Is Rocket Stability and Why Is It Important?
One can deem a rocket stable if it flies straight and maintains its intended path throughout the flight. Stability ensures your rocket doesn’t tumble, spin, or veer uncontrollably after launch.
Imagine tossing a dart. It flies straight because the weight collects at the tip, while the feathers at the back keep it steady. Similarly, in rocketry, the rocket’s center of pressure (CP) and center of gravity (CG) must be aligned correctly for smooth flight.
The center of gravity is the point where the rocket balances, like the middle of a seesaw. The center of pressure is where all aerodynamic forces acting on the rocket converge.
For optimal stability, the CG should be ahead of the CP (close to the rocket’s nose cone). Misaligned points can lead to corkscrewing, tumbling, or catastrophic failure mid-flight.
How To Test a Rocket’s Stability
Testing a model rocket’s stability involves a few straightforward methods. These approaches allow you to assess alignment and adjust if needed.

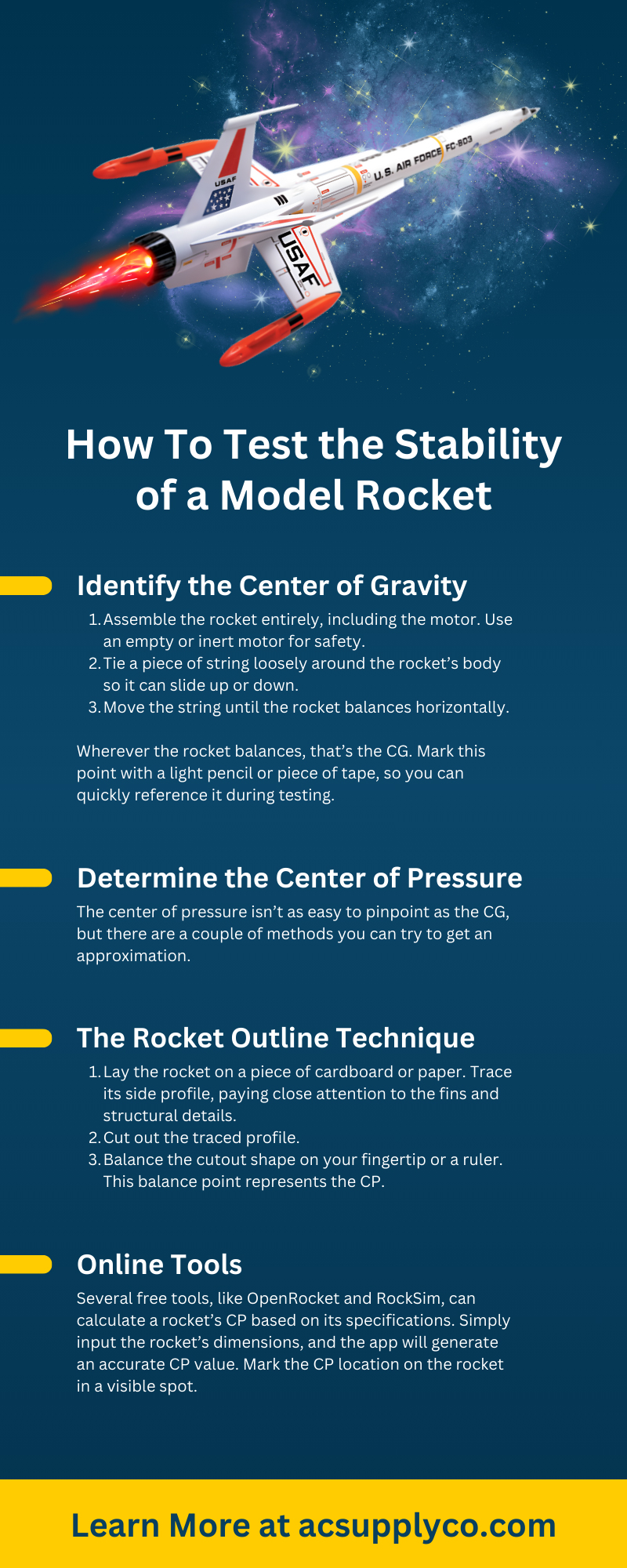

Identify the Center of Gravity
- Assemble the rocket entirely, including the motor. Use an empty or inert motor for safety.
- Tie a piece of string loosely around the rocket’s body so it can slide up or down.
- Move the string until the rocket balances horizontally.
Wherever the rocket balances, that’s the CG. Mark this point with a light pencil or piece of tape, so you can quickly reference it during testing.
Determine the Center of Pressure
The center of pressure isn’t as easy to pinpoint as the CG, but there are a couple of methods you can try to get an approximation.
The Rocket Outline Technique
- Lay the rocket on a piece of cardboard or paper. Trace its side profile, paying close attention to the fins and structural details.
- Cut out the traced profile.
- Balance the cutout shape on your fingertip or a ruler. This balance point represents the CP.
Online Tools
Several free tools, like OpenRocket and RockSim, can calculate a rocket’s CP based on its specifications. Simply input the rocket’s dimensions, and the app will generate an accurate CP value. Mark the CP location on the rocket in a visible spot.
Perform the Swing Test
The swing test is one of the easiest ways to check whether or not a model rocket will be stable during flight.
- Cut a long piece of string. Six to eight feet is sufficient for most hobby model rockets.
- Tie the string securely around the rocket at the CG point.
- Swing the rocket in a horizontal circle over your head in an open area.
A stable rocket will point nose-first and maintain alignment with the string as you’re swinging it. An unstable rocket will tumble or wobble during this test.
Additional Tips for Accurate Swing Tests
For reliable results, make sure you tie the string tightly at the CG point. A poorly secured string can shift, affecting how the rocket behaves during the test.
Perform the swing test in an area free from strong winds. This can create inconsistent movements and inconsistent results.
If possible, have an extra person observe the test from the side. It will provide a second perspective on the rocket’s motion and highlight irregularities you might miss while swinging it overhead.
Troubleshooting Swing Test Failures
If your rocket doesn’t pass the swing test, there’s no need to stress. Consider adding weight to the nose cone to shift the CG forward. Modeling clay and small washers work well for this approach.
Another solution is to enlarge the fins to shift the CP further back. Larger fins create more drag in the rear and increase stability.
Test Launch Using Caution
After running successful swing tests, conduct a low-power launch with a small engine to confirm stability under true flight conditions. Choose a wide-open area. Observe the trajectory carefully. If the rocket flies straight and begins a controlled descent, the rocket is dependable and ready for flight!
Why Rocket Stability Is Worth the Effort
Testing stability is more than just a precaution—it’s the key to ensuring your hard work pays off with a safe and successful launch. Stability maximizes flight performance while boosting your confidence as a rocketeer.
The testing phase may seem tedious, but each step brings you closer to the thrill of seeing your rocket pierce the sky. When your rocket rockets straight, the effort becomes well worth it.
Bonus Tips for Creating a Stable Rocket During the Design Phase
Wouldn’t it be nice to avoid stability issues altogether? While testing is essential, planning ahead during the design phase can save you considerable time.
Midwest Model Supply offers model rocket building kits at multiple skill levels, so you can tailor the build to your skill set. Here are some of the most important components to take into consideration for the rocket’s design to ensure a balanced flight.
Key Design Principles
- Nose weight: A slightly heavier nose cone can help keep the CG ahead of the CP without requiring substantial structural changes.
- Fin placement and size: Position the fins near the rocket’s tail and make them proportionally large enough to shift the CP rearward.
- Body symmetry: Balance and align all parts of the rocket to minimize drag and offset forces.
- Simulation software: Tools such as OpenRocket and RockSim allow users to design and test the rocket’s reliability digitally before building it.
Materials Matter!
Choosing the right materials for your rocket is crucial to its performance. Lightweight yet durable materials like fiberglass, carbon fiber, or reinforced plastic are excellent for reducing the rocket’s weight while maintaining structural integrity.
Additionally, ensure that adhesives and fasteners used to assemble components can withstand the stresses of flight, including high speeds and potential vibrations.
Launch for the Stars
Now that you know how to test the stability of a model rocket, it’s time to take action! Lay out your tools, grab some string, and start the testing process.
Whether you’re crafting model rockets for fun, competitive events, or educational purposes, stability testing should always be part of your pre-launch checklist. Explore the model kits available at Midwest Model Supply to start your rocket-building journey.
