Building a model bridge is a fun, hands-on project that provides a gateway into the world of engineering, physics, and design. Whether you’re a hobbyist looking for your next exciting project or an educator introducing young minds to engineering principles, building and testing model bridges offers a unique opportunity to combine creativity, problem-solving, and learning. To make sure your next build goes off without a hitch, learn all about methods for testing a model bridge.
Why Test a Model Bridge?
Testing your bridge gives you insights into its durability, strength, and any potential design flaws. When you test your model bridge, you’re replicating what real-world engineers do with actual bridges to make sure they can withstand the forces they’ll encounter in the real world. Here are a few key reasons why testing your bridge is so important:
- Validate your design: Testing shows you if your design holds up under stress and helps you identify areas in need of improvement.
- Learn key engineering principles: Through testing, you’ll learn concepts such as tension, compression, and the importance of proper load distribution.
- Have fun: Seeing how much weight your model bridge can hold before it fails is both thrilling and satisfying!
Types of Model Bridge Kits and Their Unique Challenges
Different types of model bridges come with their own unique challenges. Understanding the materials you’re working with before testing is key to a successful build.
- Balsa wood bridges: Popular among students and hobbyists, balsa wood bridge building kits are lightweight, affordable and easy to work with. Due to its brittle nature, balsa wood requires careful handling during both construction and testing.
- Popsicle stick bridges: Perfect for young builders due to their durability, these bridges often need higher loads during testing.
- Paper or cardboard bridges: These options are ideal for rapid prototyping but occasionally tend to fail under smaller loads.
- Plastic or metal model bridges: These kits offer more strength but require advanced tools and expertise, making them more suitable for hobbyists with higher skill levels.
Preparing Your Model Bridge for Testing
Step 1: Inspect Your Work
Before subjecting your bridge to any tests, carefully inspect it for weak joints, loose glue, or improperly aligned members. Even the best designs can fail early if you overlook these details.
Step 2: Keep a Record
Document the dimensions, weight, and materials used in your bridge so you can compare results and learn important lessons for your next project.
Step 3: Choose Your Test Method
The type of testing you choose will depend on your goals. Are you testing for weight capacity, structural efficiency, or specific types of failures? Read along to discover several testing methods to experiment with.
Load Testing Your Bridge
The most common and exciting method for evaluating model bridges is load testing. This method helps you determine how much weight your structure can take before failing. Explore some methods for load testing your bridge:

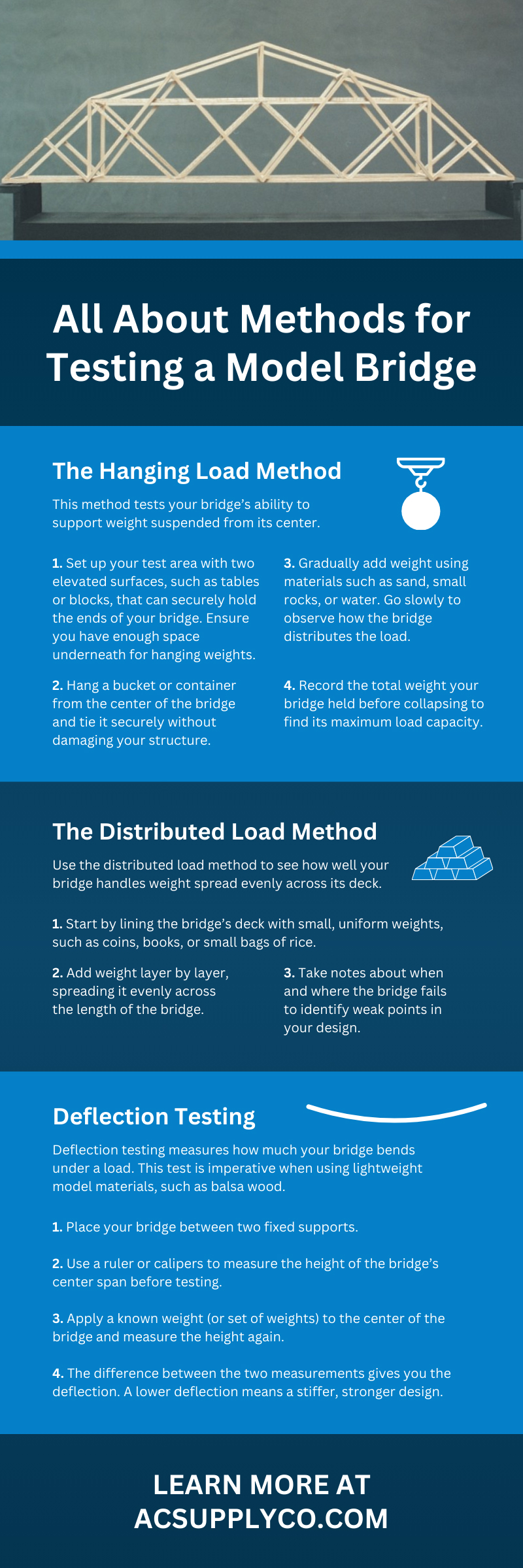

The Hanging Load Method
This method tests your bridge’s ability to support weight suspended from its center.
- Set up your test area with two elevated surfaces, such as tables or blocks, that can securely hold the ends of your bridge. Ensure you have enough space underneath for hanging weights.
- Hang a bucket or container from the center of the bridge and tie it securely without damaging your structure.
- Gradually add weight using materials such as sand, small rocks, or water. Go slowly to observe how the bridge distributes the load.
- Record the total weight your bridge held before collapsing to find its maximum load capacity.
The Distributed Load Method
Use the distributed load method to see how well your bridge handles weight spread evenly across its deck.
- Start by lining the bridge’s deck with small, uniform weights, such as coins, books, or small bags of rice.
- Add weight layer by layer, spreading it evenly across the length of the bridge.
- Take notes about when and where the bridge fails to identify weak points in your design.
Deflection Testing
Deflection testing measures how much your bridge bends under a load. This test is imperative when using lightweight model materials, such as balsa wood.
- Place your bridge between two fixed supports.
- Use a ruler or calipers to measure the height of the bridge’s center span before testing.
- Apply a known weight (or set of weights) to the center of the bridge and measure the height again.
- The difference between the two measurements gives you the deflection. A lower deflection means a stiffer, stronger design.
Compression and Tension Testing
Understanding how your bridge handles compressive and tensile forces is key for improving your designs.
- To apply compressive force, place clamps or rubber bands across the length of the bridge. Observe when and where the bridge starts to buckle.
- Run strings along important portions of the bridge and tug gently to simulate tension. Weak connections or joints will often give out under even mild tensile force.
Real-World Simulation Testing
If you want to see how your model bridge would hold up in the real world, these tests will simulate treacherous conditions, such as earthquakes, wind, and vibrations.
- Shake Test: Place your bridge on top of a board and gently shake it side to side to replicate the effects of seismic activity.
- Wind Test: Blow air directly at your bridge using a fan to reveal areas that may need additional stabilization.
- Vibration Test: With the bridge securely in place, tap its deck repeatedly or use a small vibrating motor to identify loose members.
Analyzing Your Results
Ultimately, testing is about learning. Make sure to note where and when failure occurs. Do joints give out first? Does your bridge collapse under tension or compression?
Additionally, pay attention to how weight is distributed across the bridge to see if some parts hold more stress than others. Treat each test as an opportunity to develop a better, more efficient bridge.
Best Practices and Safety Tips
Model bridge testing is thrilling but follow these tips to keep safety in mind throughout the process.
- Wear protective eyewear to protect your eyes from any materials that shift unexpectedly during testing.
- Test your bridge in an open area to avoid injuries from debris.
- Introduce younger builders to testing with smaller weights to ensure safe learning environments.
Now that you’ve learned all about methods for testing a model bridge, you’re ready to take on your next build with confidence. To get started, check out Midwest Model Supply’s full range of bridge-building kits and educational resources. With hands-on learning, a little patience, and a touch of creativity, you’ll be surprised at the architectural wonders you can achieve.
